- NEW TQi 2.4GHz Radio System with Traxxas Link Wireless Module
- NEW 4-amp DC Peak Detecting Fast Charger
- NEW Two Traxxas Power Cell Batteries with iDTM
- High-power 2200Kv motor
- Factory-installed waterproof MXL-6s Brushless Power System
- Waterproof electronics for all-weather driving excitement in water, mud and snow!
- Equipped with RPM/speed, motor temperature, and voltage telemetry sensors
|

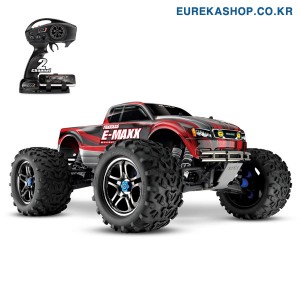

Traxxas' E-Maxx Brushless Edition is better equipped than ever! The already-loaded E-Maxx now includes waterproof electronics, two Power Cell NiMH batteries, factory installed telemetry sensors, and the TQi transmitter with Traxxas Link Wireless Module as standard equipment. The included 3000mAh Power Cell NiMH batteries unleash the full fury of the waterproof MXL-6s power system. This heavy-duty setup gives E-Maxx wheel-lifting torque and brutally quick acceleration on the way to over 35mph—and blow by 65mph by installing optional Power Cell 3S LiPo batteries! Add your Android, iPhone or iPod touch (sold separately), and the Traxxas Link application (available free on Google Play and the App Store) displays speed, temperature, voltage, and rpm data on a customizable, recordable virtual dashboard. E-Maxx arrives Ready-To-Race with all the necessary telemetry sensors installed. Traxxas Link also lets you adjust the TQi's pro-level features quickly and easily with its intuitive, high-def, touch-screen interface.
Built specifically to handle the rigors of large, power-hungry trucks, the waterproof MXL-6s electronic speed control is ready for 6S LiPo power with its massive 6.5mm gold-plated connectors, high-efficiency heatsink, integrated cooling fan and heavy-duty components. The speed control sends its power pulses to a 2200kV, 75mm motor, designed specifically for maximum performance and reliability with 6S LiPo power in torque-hungry applications. The aluminum motor can is machined to act as a massive heatsink, high-grade bearings deliver maximum efficiency, and high-strength Neodymium magnets give E-Maxx Brushless Edition outrageous torque. To resist the twist, a beefy 5mm shaft transfers power to the Brushless-Ready transmission.
Only Traxxas lets you experience 4WD excitement year-round, no matter what Mother Nature has to offer. Water, mud, and snow don't slow down the E-Maxx; its electronic speed control, receiver box, and high-torque digital steering servos are all waterproof for worry-free fun in wet conditions that send other trucks back to the workbench. Drive the E-Maxx where you want, when you want—the only limit is your imagination.
At Traxxas, we don't make conversions. We built it right the first time. So, when our engineers sat down to design the latest E-Maxx, they made sure it had all the strength and durability needed for today's most powerful aftermarket brushless setups. Give E-Maxx all you've got; its Brushless-Ready™ transmission is built for hard-hitting 6S LiPo power with the burliest brushless motors, and every component between the motor and the tires is proven tough for full-throttle fun, pack after pack, with the durability and reliability you expect from Traxxas.
Larger pinion gear/smaller spur gear combinations are for high-speed running on hard, smooth surfaces only.
The Traxxas TQi paired with the Traxxas Link app is the most advanced, feature-rich, Ready-to-Race® radio system available. Now, TQi connects wirelessly to the latest Traxxas Link app for the ultimate in ease-of-use and control. The TQi radio system can be equipped with the Traxxas Link Wireless Module to unlock exciting features such as instant Bluetooth® connectivity; access to the full range of powerful TQi tuning and telemetry tools through an intuitive high-definition graphical interface; and the ability to have a friend remotely monitor real-time telemetry while you focus on mashing the throttle. Your co-driver can even make adjustments for you, remotely, while you drive. No other radio system can do that. Just like the speed and performance Traxxas engineers into the vehicles, the power and capability of TQi and Traxxas Link expands your fun into all-new territory. Only from Traxxas, The Fastest Name in Radio Control®. Learn more about the new Traxxas TQi Radio System here.
 Traxxas Link App. Gone are the clunky controls and blocky monochrome graphics of yesterday's radio systems. This powerful app gives you complete control over the operation and tuning of your Traxxas radio controlled model with stunning visuals and absolute precision. Traxxas builds the world's fastest Ready-To-Race radio-controlled models. That level of performance demands precision control. Traxxas Link gives you the tools for exacting adjustment and superior control while always keeping you informed on your model's status and speed.
Traxxas Link collects and records real-time telemetry data as you drive. When you equip your model with optional telemetry sensors, the Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy setup and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named and saved to compare, review, and share with friends.
Once you have created the perfect control settings for your model, you can save them as a profile that you can restore later, use on another model, or share with friends. If the track conditions change, simply re-tune your Drive Effects and save them as new profile. Only Traxxas Link makes pro-level transmitter tuning so fast, convenient, and easy.
E-Maxx Brushless Edition's 17mm splined aluminum hex hubs make certain its considerable horsepower is delivered directly to the treads. The splined design is extra strong with unsurpassed torque handling to resist twist-out no matter how hard the 2200Kv motor pulls at the tires. The unique hex-hub shape also accepts standard 17mm-hex wheels.
Extreme Brushless Power goes wasted if the tires can't put the power to the ground. E-Maxx Brushless Edition has it covered with some of the toughest treads in Traxxas' arsenal, the aggressive Maxx tires used on the hard-hitting Revo 3.3 and T-Maxx 3.3. These massive meats offer tenacious grip, and their huge footprint gives E-Maxx greater stability and generous ground clearance for all-terrain fun. The tires are securely mounted to Twin-Spoke wheels, now covered in sinister black chrome as part of the exclusive Brushless Edition look.
E-Maxx Brushless Edition has a powerful presence even when it's standing still. The muscular lines of the new body evoke performance with bulging fender flares and cutting-edge graphics that put even custom painters to shame. The new, shorter cab enhances the long-and-low look while providing ample clearance for the motor.
Even at maximum speed, E-Maxx feels stable and controlled thanks to its extra-long 335mm wheelbase, 30mm longer than the original E-Maxx. The chassis also features battery compartments that position the batteries lower, angled in towards the center of the truck to lower its center of gravity. The result is improved handling and cornering stability. Heavy-duty chassis braces work together with a new center skid plate to greatly enhance chassis strength and torsional rigidity, so brushless horsepower is channeled into pure acceleration, not unwanted flex.
Traxxas engineers are always looking for ways to make Traxxas products the standard for ease of use. The new snap-lock battery hold downs speed battery installation. Press a lever to release, snap them in to lock. Securing your batteries takes just seconds and there are no clips to lose. The new configurable battery compartments are designed to easily accept either 6 or 7-cell battery packs and comparably sized LiPo packs.
E-Maxx Brushless Edition is equipped for exceptional steering precision with dual, waterproof, high-torque servos (#2075). Twin servos are lighter and more compact than a single large servo, and together they deliver unmatched monster steering response. The servo saver rides on ball bearings to keep the steering response smooth and precise. In short, it's the most powerful and responsive Maxx® steering system ever.
To handle extreme brushless power, the adjustable Traxxas wheelie bar is mandatory equipment for the E-Maxx Brushless Edition! Four snap-in adjustment positions allow you to choose how extreme you want your wheelie action to be. In the down position, it keeps the front end planted to show off E-Maxx's incredible acceleration. Raise the wheelie bar to its full-up position and the action gets wild, with giant wheelies that hang on as long as you keep mashing the throttle! The wheelie bar's unique design allows it to be easily removed in situations where you may not want the additional control.
- Waterproof MXL-6s Brushless Power System
- TQi 2.4GHz Radio System with Traxxas Link Wireless Module
- 4-amp DC Peak Detecting Fast Charger
- Two Traxxas Power Cell Batteries Included
- Equipped with RPM/speed, motor temperature, and voltage telemetry sensors
- Up to 25.2 Volts of Massive Brushless Power
- Heavy-Duty 17mm Hex Hubs
- New body design and graphics
- Aggressive 6.3" Maxx-Sized tires
- Black-Chrome 3.8" Split-Spoke wheels
- Top Speed: 35+mph out of the box, 65+mph all-out!
|
| |
E-Maxx Brushless Edition (model #39087-1) comes fully-assembled and Ready-To-Race® with the TQi 2.4GHz radio system with Traxxas Link Wireless Module installed and adjusted, MXL-6s brushless power system, Traxxas Power Cell batteries, a painted and decaled body, pre-glued tires, and Quick Start Guide. Traxxas backs the E-Maxx Brushless Edition and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows E-Maxx Brushless Edition to be serviced with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!). Follow the details link above to go in depth on all the E-Maxx Brushless Edition performance benefits and also be sure to check out the videos page to see E-Maxx Brushless Edition in action for yourself.
| Length: |
|
22.5 inches (571mm) |
| Front Track: |
|
16.5 inches (419mm) |
| Rear Track: |
|
16.5 inches (419mm) |
| Center Ground Clearance: |
|
4 inches (101mm) |
| Weight: |
|
154oz (4.36kg) |
| Height (overall): |
|
9.5 inches (241mm) |
| Wheelbase: |
|
13.2 inches (335mm) |
| Front Shock Length: |
|
XXLong |
| Rear Shock Length: |
|
XXLong |
| Front Tires (pre-glued): |
|
Maxx® (6.3" x 3.8") |
| Rear Tires (pre-glued): |
|
Maxx® (6.3" x 3.8") |
| Front Wheels: |
|
3.8" Split-Spoke (black chrome) |
| Rear Wheels: |
|
3.8" Split-Spoke (black chrome) |
| Speed Control Type: |
|
MXL-6s Waterproof
Forward/Reverse/Brake |
| Motor (electric): |
|
Brushless, 2200kV |
| Transmission: |
|
Single-Speed (2nd gear only) |
| Overall Drive Ratio: |
|
20.88 (stock, out-of-box) |
| Differential Type: |
|
Bevel Gear, Sealed, Limited Slip |
| Gear Pitch: |
|
32-Pitch |
| Chassis Structure/Material: |
|
Molded Composite Nylon Tub |
| Brake Type: |
|
Electronic |
| Drive System: |
|
Shaft-Driven 4WD |
| Steering: |
|
Bellcrank |
| Radio System: |
|
TQi™ 2.4GHz Radio System with Traxxas Link Wireless Module | |
-아래 충전기는 옵션사항입니다.(옵션에서 추가가능)
- X 705(B-6) 급속충전기 - (재고에 따라 동일 제원의 다른 충전기로 대체될 수 있습니다.)
구성 : 충전기본체, 아답터, 충전잭, 기본메뉴얼.
*주문하신 상품에 바로 사용 가능하도록 구성하여 보내드리고 있습니다.
*저용량부터 ~ 5000mAh이상 고용량 배터리까지 충전이 가능합니다.
* 저용량부터 고용량까지 1시간내외 급속충전이 가능합니다.
일반 기본충전기는 6~10시간 정도 소요 됩니다.
- 아답터 기본포함으로 가정 및 야외(차량)에서 충전 가능 합니다.
- 초간편 스타일 입니다.
- 저용량배터리부터 고용량배터리까지 충전이 가능합니다.
- 디지털 델타피크 방식이므로 안전하게 충전 가능 합니다.
- 원터치 방식의 충전기 입니다
- 충전 되고있는 양을 LCD로 모니터할 수 있습니다.
- 니켈수소 및 일반전지 리튬폴리머이/온등 다양한 배터리 충전가능합니다.
- 세부설정이 가능하여 정밀한 충전이 가능합니다.
- 스펙
- Operating Voltage range : DC11.0 ~ 18.0 Volt (가정용 파워서플라이 포함)
- Circuit power : AC to DC adaptor(DC 11.0~18.0V/5A)
- Charge current range : Max. charge power 50W
Max. discharge power 5W
- Charge current range : 0.1 ~ 5.0A
- Discharge current range : 0.1 ~ 1.0A
- Current drain for balancing Li-Po : 300mAh/cell
- Nicd/NiMH battery cell count : 1~15cell
- Li-ion/Polymer cell count : 1~6 series
- Pb battery voltage : 2V ~ 20V
- Weight : 265g(Net Weight)
- Dimensions : 133.2 x 80.6 x 33mm
|
